CPC Diagnostics

Point of Care

iChroma 2 POCT Hormone Analyzer

Features:

• Fluorescence-based Lateral Flow Immunoassay.
• Random access for single and multiple test modes
• Multi Test mode & Multi-timer function
• QC mode – Ensures accurate & reliable results
• Portable POCT that incorporates a graphical QC monitoring among manual POCT analyzers.

Enquiry Now

Description

• ichroma II is a compact fully automatic hormone analyzer, easy to use fluorescence-based POCT technology by Boditech POCT.

• ichroma II is used to measure the presence of various biomarkers for cardiac, cancer, hormones, infectious diseases, autoimmune diseases, and metabolic diseases.
ichroma IITechnical Specifications
PrincipleFluorescence and Europium Nanoparticle Immunoassay
Dimensions276 mm (W) X 220 mm (L) X 91 mm (H)
Weight1.3 kg
Power DC12V/5 A
AdaptorAC/DC Adaptor
Input100-240 V 50/60 Hz, 15 A
OutputDC 12 V/5A
BatteryDC 1.5 V x 4 ea
Display7-inch touch color LCD
MotorStepper Liner Actuators (5V, 0.34 A)
Communicator PortsUSB 4 ports, LAN Port, USB OTG port
Operation Temp.15 – 35 Degree C
Humidity10 – 70% (Non-condensing)
Storage Temp.-20 – 50 Degree C
Humidity10 – 70% (Non-condensing)
OutputLCD, Built-in Printer
Saving test results1,000 results
System check test result500 results
Control materials test results1,000 results

Electrolyte

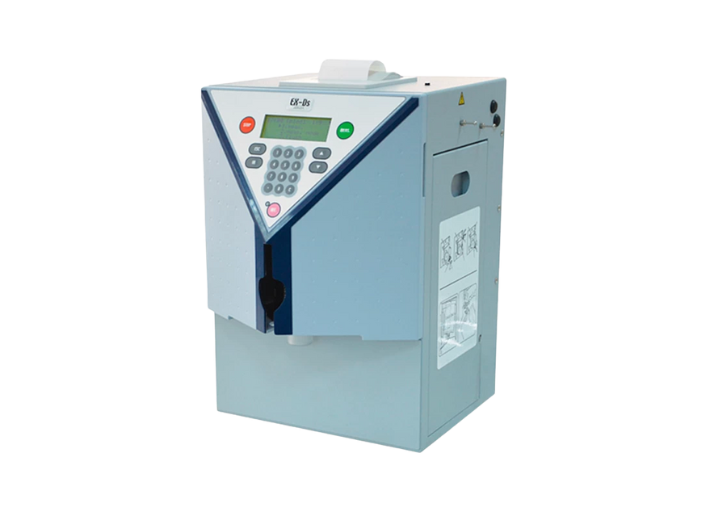

Jokoh EX-D Electrolyte Analyzer

Features:

• Measurement Parameter : Na,+ K,+ Cl-
• Measurement Sample : Whole Blood, Plasma, Serum, Diluted Urine
• Measurement Speed : 300 tests/hour
• Newly developed high sensitive electrode allows only one time calibration in a day to obtain
• very accurate result of C.V. ≤ 0.5%

Enquiry Now

Description

• Jokoh ex-d is high sensitivity electrolyte analyzer with auto-sampler(20 Samples)

• EX-D electrolyte analyzer are used to measure sodium, potassium, and chloride in whole blood, serum, or plasma.

• Ion Selective Electrode (ISE) and Flame Emission Photometry (FEP) are the two most popular analytical techniques. Majority of analyzers measure electrolyte using ISE technology.
Jokoh electrolyte analyzerTechnical Specifications
   Measurement itemsNa+, K+and Cl- simultaneously measured
   Measurement range
   Serum
Na+70.0~200.0 [mmol/L]
K+1.00~20.00 [mmol/L]
Cl-70.0~200.0 [mmol/L]
Urine
Na+10.0~500.0 [mmol/L]
K+1.00~200.0 [mmol/L]
Cl-10.0~550.0 [mmol/L]
   Adjusted dialysate
Na+130.0~150.0 [mmol/L]
K+1.00~3.00 [mmol/L]
Cl-1.00~3.00 [mmol/L]
   Dialysate A
Na+100.0~120.0 [mmol/L]
K+1.00~3.00 [mmol/L]
Cl-100.0~120.0 [mmol/L]
   Dialysate B
Na+20.0~40.0 [mmol/L]
   Measurement pH range7.0~8.0 (no change in pH during measurement)
   Measurement principleIon Selective Electrode method
Na+Crown ether solution membrane electrode
K+Valinomycin solution membrane electrode
Cl-Grade-4 ammonium salt solution membrane electrode
   Measurement targetsWhole blood, serum, plasma, urine (to be diluted), adjusted dialysate, dialysate A, dialysate B
   Processing capacity100 samples/hour (max.)
   Sample aspiration volume95 [μL]
300 [μL] in “urine” mode
60 [μL] or more in small volume sample measurement
   Sample table
Routine measurement20 samples
Urgent sample1 sample
