Horiba Instruments
Bench Top
New Yumizen H500 & H550
Hematology Analyzer
The new Yumizen H500 & H550 are compact benchtop hematology analyzers with enhanced performance, new features and increased benefits. Ideal for small labs and meet a variety of clinical lab environments and settings: routine hematology, satellites labs, oncology care, blood banks. Infectious flags for Malaria and Dengue are optional. The new remote assistance Yumicare is connected.
Features:
• 60 tests/hour
• Multi analysis modes: standard, prediluted, eQC,…
• Whole blood 20 µL sampling
• Only 2 reagents for Diff analysis
• 37 parameters menu with extended differential WBC count : IML, IMM, IMG, ALY
• Bidirectional connection in ASTM and HL7
• 40 tubes autonomy with continuous loading and STAT mode
• New graphical interface with color-coded menus
• QC management: iQC indicators, overlapping QC, repeatability testing mode
• Optional infectious screening flags for Malaria & Dengue
• Yumicare remote assistance service

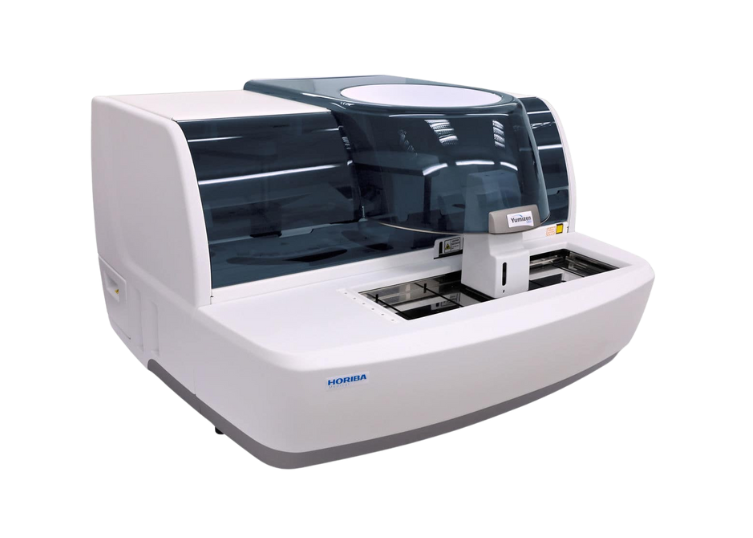

Yumizen G800h/G850h
Hemostasis Analyzer
HORIBA Medical Yumizen G800h and Yumizen G850h are fully automated benchtop hemostasis analyzers with Advanced Pre-Analytical Sample Integrity (A-PSI) for laboratories with mid-size workloads.
The Yumizen G800h and Yumizen G850h improve accuracy by identifying potentially problematic samples. The analyzers detect and analyze HIL interferences (hemolysis, Icteria, and lipemia) per test. They automatically check the primary tube fill level for high and low levels.
Features:
• 4 independent measuring channels
• 14 cooled + 4 reagent embedded positions
• 60 samples + 5 STAT sample positions
• Automatic reflex and rerun capability
• Master calibration curve (no calibration needed)
• 3 reference measuring methods: clotting, turbidimetric and chromogenic
• Continuous loading: 60 samples / 600 cuvettes
Maintenance free
• Throughput: 150 PT / hour, 70 APTT / hour, 40 DDimer / hour
• Positive identification for samples, controls and reagents
• Internal data storage, integrated computer
• Ready-to-use reagents
• The Yumizen G800h and Yumizen G850h improve accuracy by identifying potentially problematic samples. The analyzers detect and analyze HIL interferences (hemolysis, Icteria, and lipemia) per test. They automatically check the primary tube fill level for high and low levels.
• Smart QC management
• Innovative user interface
• Multiple connectivities: Laboratory information system, VPN
Yumizen G400 DDi
Hemostasis Analyzer
Semi-automated Hemostasis Instrument
Smart way to test:
• 4 independent measuring channels
• 20 incubation positions
• Easy to operate, innovative user interface
• QC management
• Master calibration curve (no calibration need)
Security:
• Bar code reading capability
• External data storage (USB device)
• Ready-to-use reagents
Increase efficiency:
• 3 reference measuring methods: clotting, immuno-turbidimetric and chromogenic
• 120 sec maximum measurement
• Maintenance free
User friendly features:
• Internal storage capacity
• Integrated printer
• Reduced footprint
• Multiple connectivity’s
– Laboratory information system
– Optional Yumizen G data software
Yumizen G200
Hemostasis Analyzer
Semi Automated Hemostasis Instrument
Compact 2-channel instrument device dedicated for small laboratories to perform hemostasis screening and DDimers tests.
Smart way to test:
• 2 independent measuring channels
• Easy to operate, innovative user interface
• QC management
• Master calibration curve (no calibration needed)
Comprehensive security:
• Bar code reading capability
• External data storage (USB device)
• Reagent ready to use
Increase efficiency:
• 3 reference measuring methods: clotting, immuno-turbidimetric and chromogenic
• 120 sec maximum measurement
• Maintenance free
User friendly features:
• 1’000 data storage capacity
• External printer connectivity
• Multiple connectivities
Yumizen CA60
Semi-automated Clinical Chemistry Analyzer
Yumizen CA60 is a compact semi-automatic clinical chemistry analyzer based on the Vertical Overlay Concept Design (VOCD), equipped with durable Multi Array Light System (MALS).
Wide Test Menu:
• Pre-programmed biochemistry & turbidimetric tests: Ready to use Yumizen CR Clinical Chemistry Reagents
• Multiple user programs can be stored
• Separate QC file: Easy quality monitoring
User Friendly Interface:
• 7” Touch colored LCD
• Tile based menu configuration
• Easy to use
• Know results with the changing colors
Advanced Flow Chemistry:
• Quartz glass flow cuvette: Accurate & error free results
• 18 μL flow cuvette – lower reagent aspiration: Economical
• Ease of testing: Use Flow Cuvette, Macro, Semi-micro or Micro Round tubes
Yumizen CA40
Semi-automated Clinical Chemistry Analyzer
Yumizen CA40 is a semi-automated Clinical Chemistry analyzer with facility to perform Chemistry, Immunoturbidimetry and Coagulation Tests (PT & APTT). It is an ideal solution for small laboratories with the facility to perform a wide range of biochemical tests.
Features:
• Semi-automated Clinical Chemistry analyzer with coagulation tests capacity (PT & APTT)
• 8 incubation positions for chemistry tests and 5 positions for coagulation tests
• 8-inch colored touch screen display
• Tri-level Quality Control with Levey-Jennings chart
• 6 filters with additional 2 open positions
POCT
Microsemi CRP LC-667G
Hematology Analyzer
World exclusive concept: Simultaneous blood analysis + CRP measurement, along with data management
• CBC+CRP results in 4 minutes (15 tests / hour)
• CBC results in 1 minute (55 tests / hour)
• 19 parameters
• Open Tube
Features:
• Highly compact and lightweight
• Micro-sampling on whole blood: CBC: 10μL / CBC+CRP: 18μL
• Precise cellular identification through electronic impedance variation method
• Haemoglobin measurement with photometry
• CRP measurement with immunoturbidimetry technology
CRP:
• Ready and easy to use CRP reagent
• No need to take the CRP reagent out after use
• Integrated thermal printer (full data printout, including PLT, RBC and WBC curves)
• User-friendly interface (colour touch screen, virtual keyboard)
• Data transfer with flash card (archiving to PC, upload of QC target values)
